The main part of the pipe bender is equipped with an elbow die, a rotary table and a main shaft of the pipe bender. The clamping of the pipe is achieved by clamping the cylinder and clamping the screw rod. The bent pipe component is fixed by the main shaft of the bending pipe, and rotates with the bending die of the main part of the main pipe to rotate, and the elbow is matched with the pipe bending die of the main part of the pipe bender.

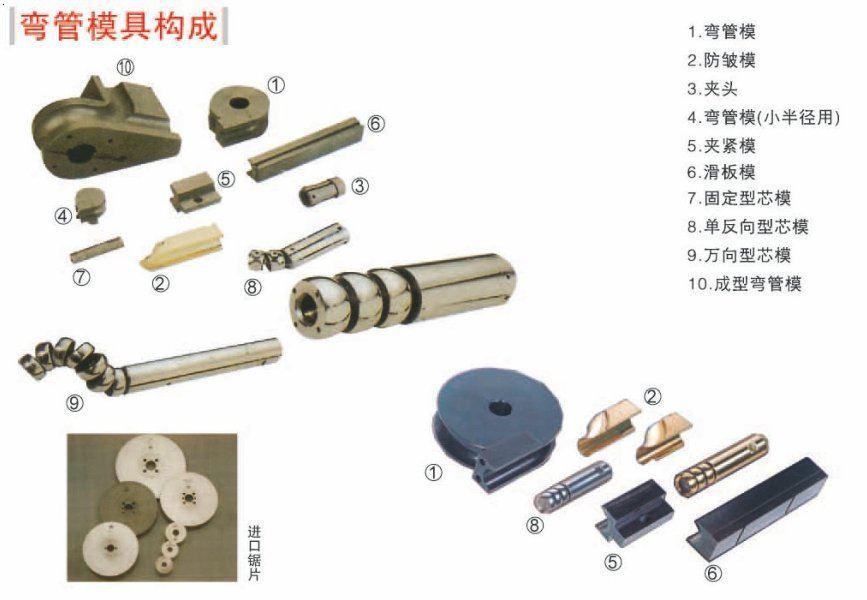

Steps for installing pipe bending die of pipe bender:
First, wheel die (BENDING, DIE) installation:
1. remove the wheel die retaining nut in counter clockwise direction. 2. put in the wheel die, then fix the nut of the wheel die.
Two, clamping (CLAMP, DIE) installation:
1. pull out the die fixing centring shaft. 2. insert the clamping die and insert the fixed spindle.
Adjust:
1., the clamping die holder is fixed and relaxed, then the control panel is placed in manual mode, and the clamping button is pressed to the end of clamping action. At this point, the gap between the wheel and die needs clearance, and can be adjusted by clamping the die base and adjusting the screw.
2. adjust the clamping base and adjust the screw, so that the clamping die and the wheel die are completely closed.
3. press the clamp back button to clamp the die back, then adjust the clamping screw clockwise rotation about 1/2-1/4 circle.
4. then the clamping block nut can be locked tightly.
Three, guide mode (GUAID, DIE) installation:
1. remove the guide screw and then put the guide die in it. 2. lock the guide screw.
Adjust:
1. the guide mold base fixed nut to relax, and then the control panel in manual mode, press the button to end point pinch guided mode acts, at this point in the round mode and guided mode to a gap can be used to guide mold adjustment screw to adjust.
2. adjust the guide seat adjustment screw to make the guide die and the wheel die completely closed.
3. press or withdraw the button, and then adjust the guide screw clockwise direction of about 1/2-1/4 laps.
4., then the guide die set screws can be locked.
Four, mandrel (MANDREL) installation:
1. the mandrel in a clockwise direction into the feedthrough rod. 2. then fix the mandrel and screw it.
